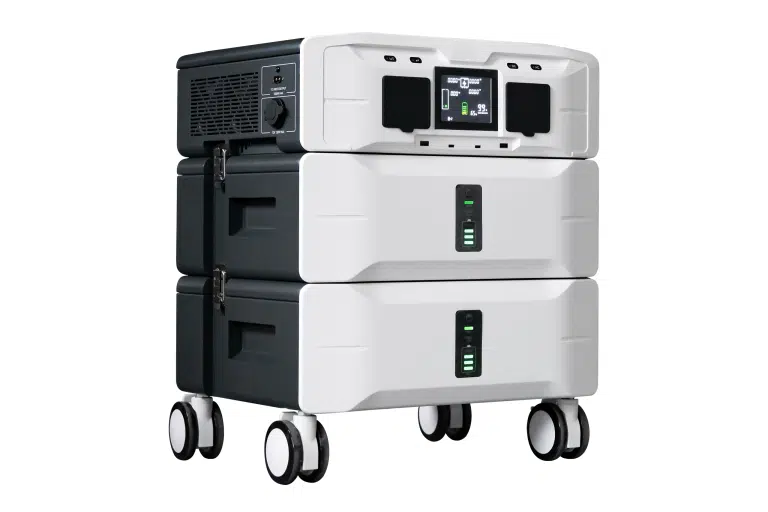

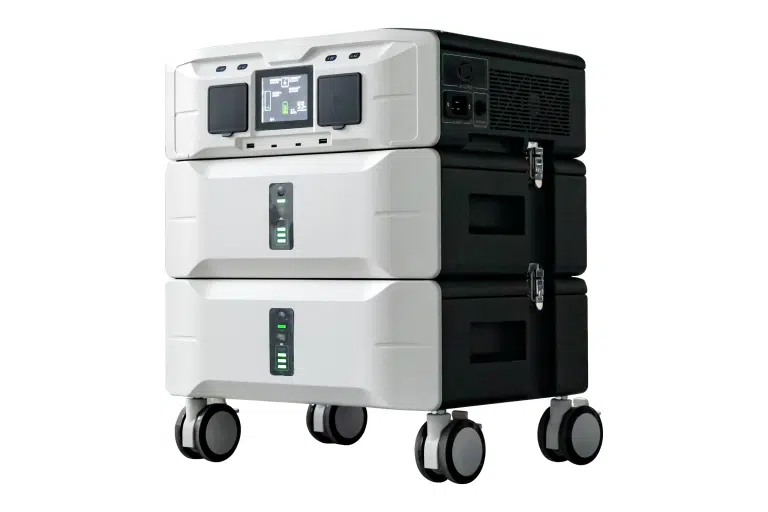

Solaris of Ra 5000
Maximum power when it matters most.
- 5000W Pure Sine Wave Inverter
- 5120Wh Massive LiFePO4 Battery
- Expandable Battery System
- Ultra-Fast 3450W AC Charging
- 1000W MPPT Solar Charging
Key Specifications
Need a custom quote?
Email us with the product, quantity, and installation details and we'll prepare a competitive proposal.
Product Details
Product Specifications
Solaris of Ra 5000 combines a 5120Wh LiFePO4 battery, 5000W pure sine wave inverter, smart app control, and heavy-duty output support into a high-capacity power solution built for demanding residential and commercial applications.
Key Features
5000W Pure Sine Wave Inverter
Provides 5000W continuous AC output with 9000W surge power, capable of powering high-load appliances including:
- Refrigerators and freezers
- Air conditioners
- Induction cookers
- Electric kettles
- Microwaves
- Washing machines
- Power tools
- Pumps
- Computers and servers
- Medical equipment
The pure sine wave output ensures safe operation for sensitive electronics.
Massive 5120Wh LiFePO4 Battery
Built with premium Lithium Iron Phosphate (LiFePO4) battery technology offering:
- 5120Wh battery capacity
- Over 4,000 charge cycles
- Approximately 80% capacity retention after 4,000 cycles
- Superior thermal stability
- Enhanced safety
- Long operational lifespan
Expandable Battery System
Increase storage capacity from 5.12kWh standard up to 10.24kWh with an additional battery module, making it ideal for extended power outages and off-grid installations.
Ultra-Fast 3450W AC Charging
Recharge rapidly from an AC outlet with:
- Maximum AC charging power: 3450W
- High charging efficiency up to 93%
- Significantly reduced recharge time compared to conventional power stations
1000W MPPT Solar Charging
Designed for efficient renewable energy charging.
- Maximum solar input: 1000W
- MPPT solar charging
- DC input voltage: 12-80V
- Maximum PV input current: 16A
Emergency Power Supply (EPS)
Provides 10ms seamless switching, automatically supplying backup power during grid outages to keep essential devices operating without interruption.
Smart App Control
Integrated Wi-Fi and Bluetooth connectivity enables remote monitoring and control through the companion mobile application.
- Battery monitoring
- Power usage monitoring
- Input and output management
- System settings
- Firmware updates
LCD Status Display
Large built-in LCD provides real-time information including:
- Battery percentage
- Input power
- Output power
- Remaining runtime
- Charging status
- System warnings
Pure Sine Wave Output
Clean electrical output with THD below 1.5%, stable voltage, and safe operation for sensitive electronics and medical equipment.
Multiple Charging Methods
Recharge via AC wall outlet, solar panels, or vehicle charging.
Built for Heavy-Duty Applications
Ideal for:
- Home backup systems
- Off-grid homes
- RV and caravan power
- Outdoor events
- Construction sites
- Emergency response
- Mobile workshops
- Commercial applications
Technical Specifications
Battery
| Battery Type | LiFePO4 |
|---|---|
| Battery Capacity | 5120Wh |
| Nominal Battery Voltage | 51.2V |
| Battery Voltage Range | 40-60V |
| Nominal Charging Current | 80A |
| Nominal Discharging Current | 100A |
| Battery Cycle Life | 4,000+ cycles (80% DOD @25°C) |
AC Input
| Maximum AC Charging Power | 3450W |
|---|---|
| Input Voltage (100V Model) | 100 / 110 / 120VAC |
| Input Voltage (230V Model) | 220 / 230 / 240VAC |
| Voltage Range (100V Models) | 85-130V |
| Voltage Range (230V Models) | 180-260V |
| Frequency (100V Models) | 60Hz |
| Frequency (230V Models) | 50Hz |
| Frequency Range (100V Models) | 55-65Hz |
| Frequency Range (230V Models) | 45-55Hz |
| Power Factor | >0.99 |
DC / Solar Input
| Maximum Solar Charging Input | 1000W |
|---|---|
| DC Input Voltage Range | 12-80V |
| Maximum Input Current | 16A |
AC Output
| Rated AC Output Power | 5000W |
|---|---|
| Peak Surge Power | 9000W |
| Output Voltage | 220 / 230 / 240VAC |
| Output Frequency | 50Hz |
| Rated Output Current | 21A |
| Waveform | Pure Sine Wave |
| Total Harmonic Distortion (THD) | <1.5% |
USB & DC Outputs
| USB-A (QC) x2 | 5V⎓3A, 9V⎓2A, 12V⎓1.5A |
|---|---|
| USB-C (PD) | 5V⎓3A, 9V⎓3A, 12V⎓3A, 20V⎓5A (100W) |
| Car Socket | 12V⎓10A |
| XT60 Output | 12V⎓30A, 24V⎓25A, 36V⎓20A |
Efficiency
| Battery to AC Efficiency | Up to 93% |
|---|---|
| AC to Battery Charging Efficiency | Up to 93% |
Protection Features
- AC output over-current
- AC output short circuit
- AC charging over-current
- AC output over-voltage
- AC output under-voltage
- AC output over-frequency
- AC output under-frequency
- Inverter over-temperature
- AC charging over-voltage
- AC charging under-voltage
- Battery high temperature
- Battery low temperature
- Battery over-voltage
- Battery under-voltage
General Specifications
| Dimensions (Main Unit) | 450 × 538 × 352 mm |
|---|---|
| Dimensions (Expandable Configuration) | 450 × 543 × 735 mm (2 modules) |
| Expandable Configuration | 450 × 543 × 1152 mm (3 modules) |
| Weight | 65.2 kg (Main Unit), 117.3 kg (2 modules), 28.4 kg (Battery Module) |
| Display | LCD |
| Cooling System | Forced Air Cooling |
| Charging Temperature | 0°C to 40°C |
| Discharging Temperature | -20°C to 40°C |
| Operating Humidity | 10-90% RH |
| Ingress Protection | IP20 |
| Noise Level | <65 dB |
| Connectivity | Wi-Fi & Bluetooth |
Ideal Applications
- Whole-home emergency backup
- Off-grid homes and cabins
- Solar energy storage systems
- RVs and motorhomes
- Construction and industrial job sites
- Outdoor events and exhibitions
- Mobile workshops
- Small business backup power
- Medical equipment and critical electronics
- Telecommunications and networking equipment
