RaPower 1800
Dependable everyday backup power.
- 1800W Pure Sine Wave AC Output
- 1024Wh High-Capacity LiFePO4 Battery
- Ultra-Fast AC Charging
- Solar Charging Ready
- Power Up to 11 Devices Simultaneously
Key Specifications
Need a custom quote?
Email us with the product, quantity, and installation details and we'll prepare a competitive proposal.
Product Details
Product Specifications
RaPower 1800 combines a 1024Wh LiFePO4 battery, 1800W pure sine wave inverter, smart charging, and broad output support into a portable power station built for dependable home backup, travel, and off-grid use.
Key Features
1800W Pure Sine Wave AC Output
Delivers 1800W continuous output with 3600W surge capacity, allowing it to power refrigerators, microwaves, power tools, coffee makers, televisions, laptops, CPAP machines, routers, drones, and many other household and outdoor devices.
High-Capacity 1024Wh LiFePO4 Battery
Built with premium LiFePO4 battery cells offering:
- 1024Wh energy storage
- Over 4,000 charge cycles
- Approximately 80% capacity retention after 4,000 cycles
- Superior thermal stability
- Enhanced safety and long service life
Ultra-Fast AC Charging
Recharge from 0% to 100% in approximately 1.2 hours using AC power.
- Maximum AC charging power: 1200W
- High charging efficiency up to 96%
Solar Charging Ready
Ideal for off-grid applications using compatible solar panels.
- Maximum solar charging input: 500W
- MPPT solar charging
- DC input voltage: 10-52V
- Maximum PV input current: 11A
Vehicle Charging
Recharge while travelling via your vehicle.
- Maximum car charging input: 120W
Seamless UPS Function
Provides an uninterruptible power supply (UPS) with an automatic switching time of approximately 10ms, ensuring connected devices continue operating during power outages.
SmartDrive Technology
Automatically adjusts inverter performance when compatible connected loads temporarily exceed the rated output, helping maintain reliable power delivery while protecting the system.
Pure Sine Wave Inverter
Produces clean, stable electricity with THD below 1.5%, making it suitable for sensitive electronics including computers, networking equipment, televisions, medical devices, and audio equipment.
Advanced Battery Management System (BMS)
Comprehensive battery protection continuously monitors system performance to maximize safety, battery life, and operational reliability.
Power Up to 11 Devices Simultaneously
A wide selection of AC, USB, and DC outputs allows multiple devices to be powered or charged at the same time.
Wireless Monitoring
Integrated Wi-Fi and Bluetooth connectivity enables convenient monitoring and control through a compatible mobile application.
Built-in LED Emergency Light
Includes a 3W LED light for camping, emergency situations, and nighttime use.
Technical Specifications
Battery
| Battery Type | LiFePO4 |
|---|---|
| Battery Capacity | 1024Wh |
| Nominal Battery Voltage | 51.2V |
| Battery Voltage Range | 40-60V |
| Nominal Charging Current | 20A |
| Nominal Discharging Current | 40A |
| Maximum Discharging Current | 50A |
| Battery Cycle Life | 4,000+ cycles (80% DOD @25°C) |
AC Input
| Maximum AC Charging Power | 1200W |
|---|---|
| Input Voltage (100V Model) | 100VAC |
| Input Voltage (230V Model) | 230VAC |
| Voltage Range (100V) | 85-130V |
| Voltage Range (230V) | 180-260V |
| Frequency (100V) | 60Hz |
| Frequency (230V) | 50Hz |
| Frequency Range (100V) | 55-65Hz |
| Frequency Range (230V) | 45-55Hz |
| Power Factor | >0.99 |
DC / Solar Input
| Maximum Car Charging Input | 120W |
|---|---|
| Maximum Solar Charging Input | 500W |
| DC Input Voltage Range | 10-52V |
| Maximum DC / PV Input Current | 11A |
AC Output
| Rated AC Output Power | 1800W |
|---|---|
| Peak Surge Power | 3600W |
| Output Voltage | 100VAC / 230VAC |
| Output Frequency | 50Hz / 60Hz |
| Rated Output Current | 18A (100V) / 7.8A (230V) |
| Waveform | Pure Sine Wave |
| Total Harmonic Distortion (THD) | <1.5% |
USB & DC Outputs
| USB-C1 | 100W Power Delivery (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A) |
|---|---|
| USB-C2 | 30W Power Delivery |
| USB-C3 | 30W Power Delivery |
| USB-A1 | 30W Fast Charge |
| USB-A2 | 30W Fast Charge |
| Car Socket | 13.2V, 10A |
| DC5525 Output 1 | 13.2V, 8A |
| DC5525 Output 2 | 13.2V, 8A |
| Maximum Combined DC Output | 132W |
Efficiency
| Battery to AC Efficiency | Up to 96% |
|---|---|
| AC to Battery Charging Efficiency | Up to 96% |
Protection Features
- AC output over-current
- AC output short circuit
- AC charging over-current
- AC output over-voltage
- AC output under-voltage
- AC output over-frequency
- AC output under-frequency
- Inverter over-temperature
- AC charging over-voltage
- AC charging under-voltage
- Battery high temperature
- Battery low temperature
- Battery over-voltage
- Battery under-voltage
General Specifications

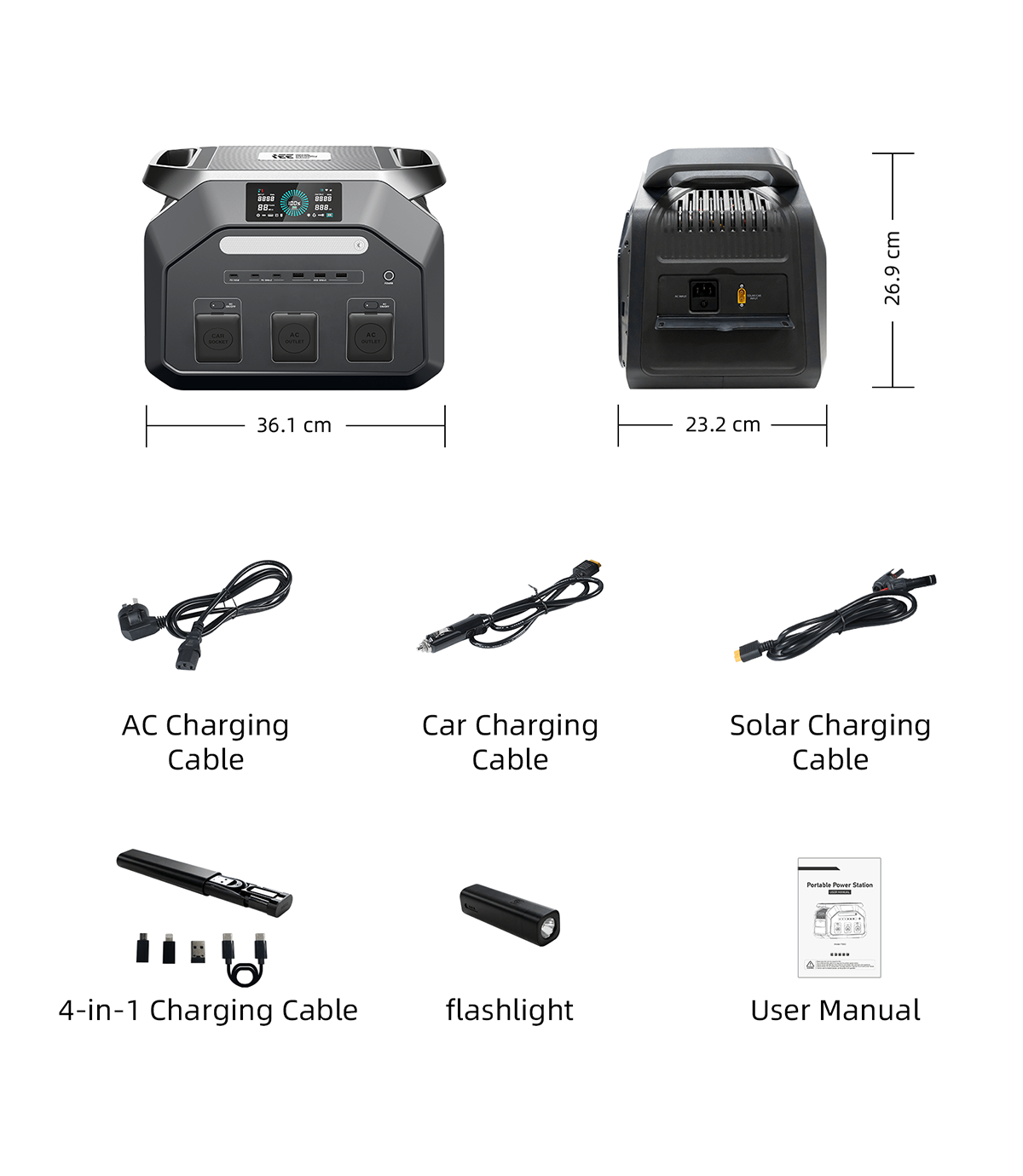

| Dimensions | 361.5 × 269.5 × 232.6 mm |
|---|---|
| Weight | 12.7 kg |
| Cooling System | Forced Air Cooling |
| Charging Temperature | 0°C to 40°C |
| Discharging Temperature | -15°C to 40°C |
| Operating Humidity | 0-95% RH (Non-condensing) |
| Ingress Protection | IP20 |
| Noise Level | <65 dB |
| Connectivity | Wi-Fi & Bluetooth |
| LED Light | 3W |
Ideal Applications
- Home emergency backup power
- Camping and outdoor adventures
- Caravan and RV travel
- Off-grid cabins
- Job sites and construction work
- Mobile offices
- Photography and drone charging
- Emergency preparedness
- Medical equipment such as CPAP machines
- Backup power for networking and communication equipment
- Outdoor events and exhibitions
