AmunRa 3200
Built for performance and serious energy demands.
- 3200W Pure Sine Wave AC Output
- 2048Wh Massive LiFePO₄ Battery
- Ultra-Fast AC Charging
- High-Power MPPT Solar Charging
- Power Up to 16 Devices Simultaneously
Key Specifications
Need a custom quote?
Email us with the product, quantity, and installation details and we'll prepare a competitive proposal.
Product Details
Product Specifications
AmunRa 3200 combines a 2048Wh LiFePO4 battery, 3200W pure sine wave inverter, smart charging, and wide device compatibility into a high-capacity portable power station built for demanding backup and off-grid use.
Key Features
3200W Pure Sine Wave AC Output
Delivers 3200W continuous power with an impressive 6400W surge capacity, making it suitable for powering refrigerators, microwaves, induction cookers, power tools, air conditioners, coffee machines, televisions, laptops, and other demanding appliances.
Massive 2048Wh LiFePO4 Battery
Built with premium lithium iron phosphate (LiFePO4) battery cells for exceptional longevity and safety.
- 2048Wh battery capacity
- 4,000+ charge cycles
- Approximately 80% capacity retention after 4,000 cycles
- Superior thermal stability
- Enhanced safety and long service life
Ultra-Fast AC Charging
Recharge from empty to full in approximately 1.2-1.5 hours using high-speed AC charging.
- Maximum AC charging power: 1800W
- Charging efficiency up to 94%
High-Power MPPT Solar Charging
Designed for rapid off-grid charging with high-efficiency MPPT technology.
- Maximum solar input: 1000W
- MPPT efficiency over 99.9%
- DC input voltage: 12-60V
- Maximum PV input current: 20A
Vehicle Charging
Recharge while travelling using a standard vehicle outlet.
- Maximum car charging input: 120W
EPS / UPS Backup Function
Features Emergency Power Supply (EPS) with an automatic switchover time of approximately 10ms, ensuring uninterrupted power for essential devices during outages.
SmartDrive Technology
Automatically adjusts inverter performance when connected loads temporarily exceed the rated output, allowing compatible appliances to continue operating safely and efficiently without unnecessary shutdowns.
Advanced Battery Management System (BMS)
A dual-core intelligent BMS continuously monitors battery performance and provides comprehensive protection for maximum safety and reliability.
Power Up to 16 Devices Simultaneously
Equipped with 16 output ports across AC, USB-C, USB-A, and DC connections, allowing multiple devices to be powered or charged at the same time.
Smart App Control
Built-in Wi-Fi and Bluetooth connectivity enables remote monitoring and control through the compatible mobile application.
Built-in LED Emergency Light
Integrated 3W LED light provides convenient illumination for camping, emergencies, and outdoor use.
Technical Specifications
Battery
| Battery Type | LiFePO4 |
|---|---|
| Battery Capacity | 2048Wh |
| Nominal Battery Voltage | 51.2V |
| Battery Voltage Range | 40-60V |
| Nominal Charging Current | 50A |
| Nominal Discharging Current | 70A |
| Maximum Discharging Current | 90A |
| Battery Cycle Life | 4,000+ cycles (80% DOD @25°C) |
AC Input
| Maximum AC Charging Power | 1800W |
|---|---|
| Input Voltage (100V Model) | 100 / 110 / 120VAC |
| Input Voltage (230V Model) | 220 / 230 / 240VAC |
| Voltage Range (100V Models) | 85-130V |
| Voltage Range (230V Models) | 180-260V |
| Frequency (100V Models) | 60Hz |
| Frequency (230V Models) | 50Hz |
| Frequency Range (100V Models) | 55-65Hz |
| Frequency Range (230V Models) | 45-55Hz |
| Power Factor | >0.99 |
DC / Solar Input
| Maximum Car Charging Input | 120W |
|---|---|
| Maximum Solar Charging Input | 1000W |
| DC Input Voltage Range | 12-60V |
| Maximum DC / PV Input Current | 20A |
AC Output
| Rated AC Output Power | 3200W |
|---|---|
| Peak Surge Power | 6400W |
| Output Voltage | 100 / 110 / 120VAC or 220 / 230 / 240VAC |
| Output Frequency | 50Hz / 60Hz |
| Rated Output Current | 32A / 29A / 26.6A (100V Models); 14.5A / 13.9A / 13.3A (220-240V Models) |
| Waveform | Pure Sine Wave |
| Total Harmonic Distortion (THD) | <1.5% |
USB & DC Outputs
| USB-C1 | 100W Power Delivery (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A) |
|---|---|
| USB-C2 | 100W Power Delivery (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A) |
| USB-C3 | 30W Power Delivery |
| USB-C4 | 30W Power Delivery |
| USB-A1 | 30W Fast Charge |
| USB-A2 | 30W Fast Charge |
| USB-A3 | 30W Fast Charge |
| USB-A4 | 30W Fast Charge |
| Car Socket | 13.2V, 10A |
| DC5525 Outputs (2x) | 13.2V, 8A each |
| Maximum Combined DC Output | 132W |
Efficiency
| Battery to AC Efficiency | Up to 94% |
|---|---|
| AC to Battery Charging Efficiency | Up to 94% |
Protection Features
- AC output over-current
- AC output short circuit
- AC charging over-current
- AC output over-voltage
- AC output under-voltage
- AC output over-frequency
- AC output under-frequency
- Inverter over-temperature
- AC charging over-voltage
- AC charging under-voltage
- Battery high temperature
- Battery low temperature
- Battery over-voltage
- Battery under-voltage
General Specifications

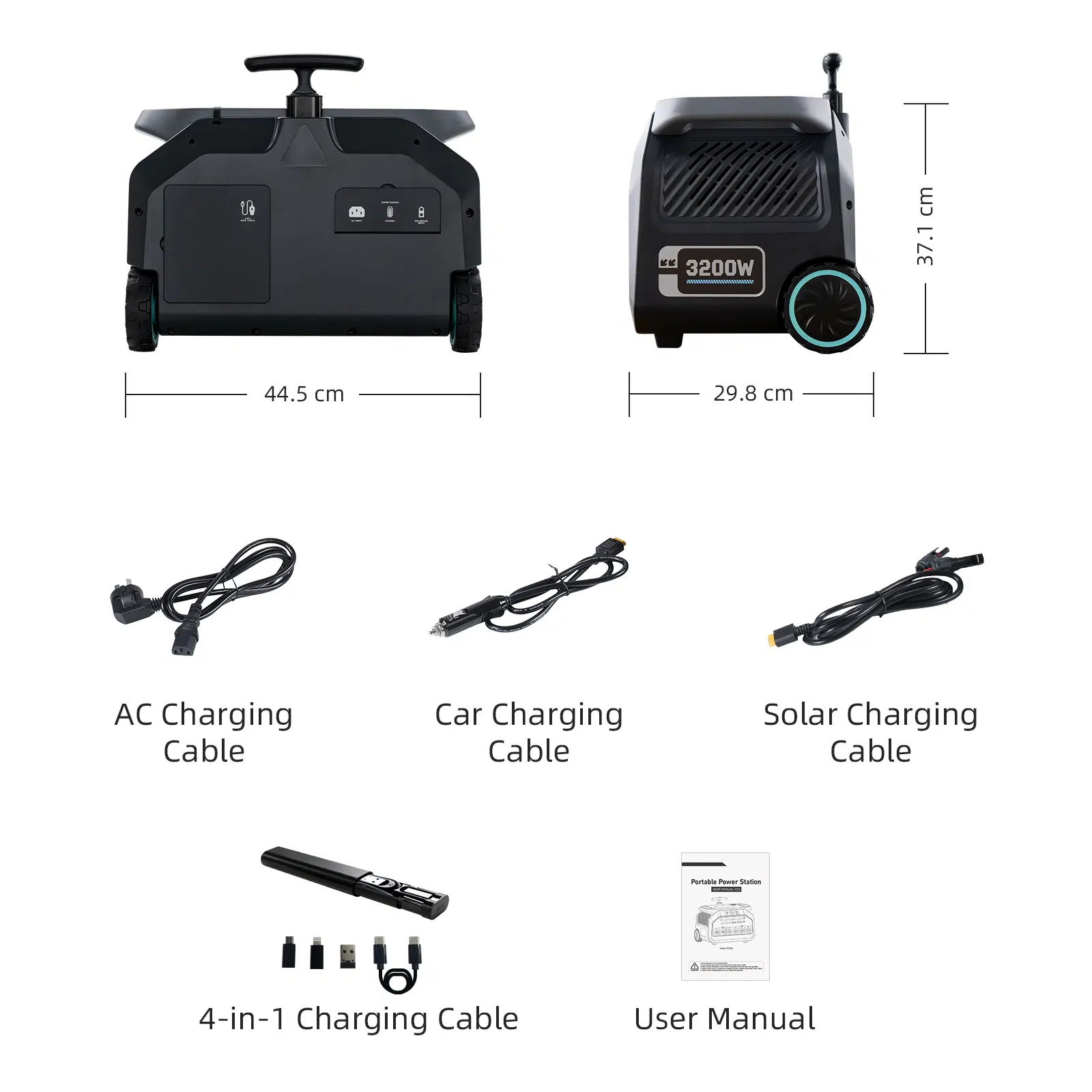

| Dimensions | 445 × 298 × 371 mm |
|---|---|
| Weight | 24.35 kg |
| Cooling System | Forced Air Cooling |
| Charging Temperature | 0°C to 40°C |
| Discharging Temperature | -15°C to 40°C |
| Operating Humidity | 0-95% RH (Non-condensing) |
| Ingress Protection | IP20 |
| Noise Level | <65 dB |
| Connectivity | Wi-Fi & Bluetooth |
| LED Light | 3W |
Ideal Applications
- Home emergency backup
- Whole-home essential appliance support
- RV and caravan travel
- Camping and outdoor adventures
- Off-grid cabins and tiny homes
- Construction sites and power tools
- Mobile workshops
- Outdoor events and exhibitions
- Photography and video production
- Medical equipment such as CPAP machines
- Backup power for networking, servers, and communication equipment
