V28 3.0 Triple Lens
Triple the View. Zero Compromise.
- 4K Ultra HD Triple-Stream Video
- Full-Color Night Vision
- Smart AI Tracking Technology
- Built-In Alarm & Security Lights
- Solar Powered with 20000mAh LiFePO4 Battery
Key Specifications
Need a custom quote?
Email us with the product, quantity, and installation details and we'll prepare a competitive proposal.
Product Details
Product Specifications
The V28 3.0 Triple Lens combines 4G & 5G connectivity, triple-lens monitoring, AI human detection, full-color night vision, and solar-powered operation into a reliable outdoor security solution for remote locations and everyday monitoring.
Key Features
4G & 5G LTE Connectivity
Stay connected anywhere without requiring Wi-Fi.
- Stable 4G & 5G network connection
- Ideal for remote locations
- Supports Cat1 and Cat4 LTE networks
- Remote monitoring via O-KAM Pro App

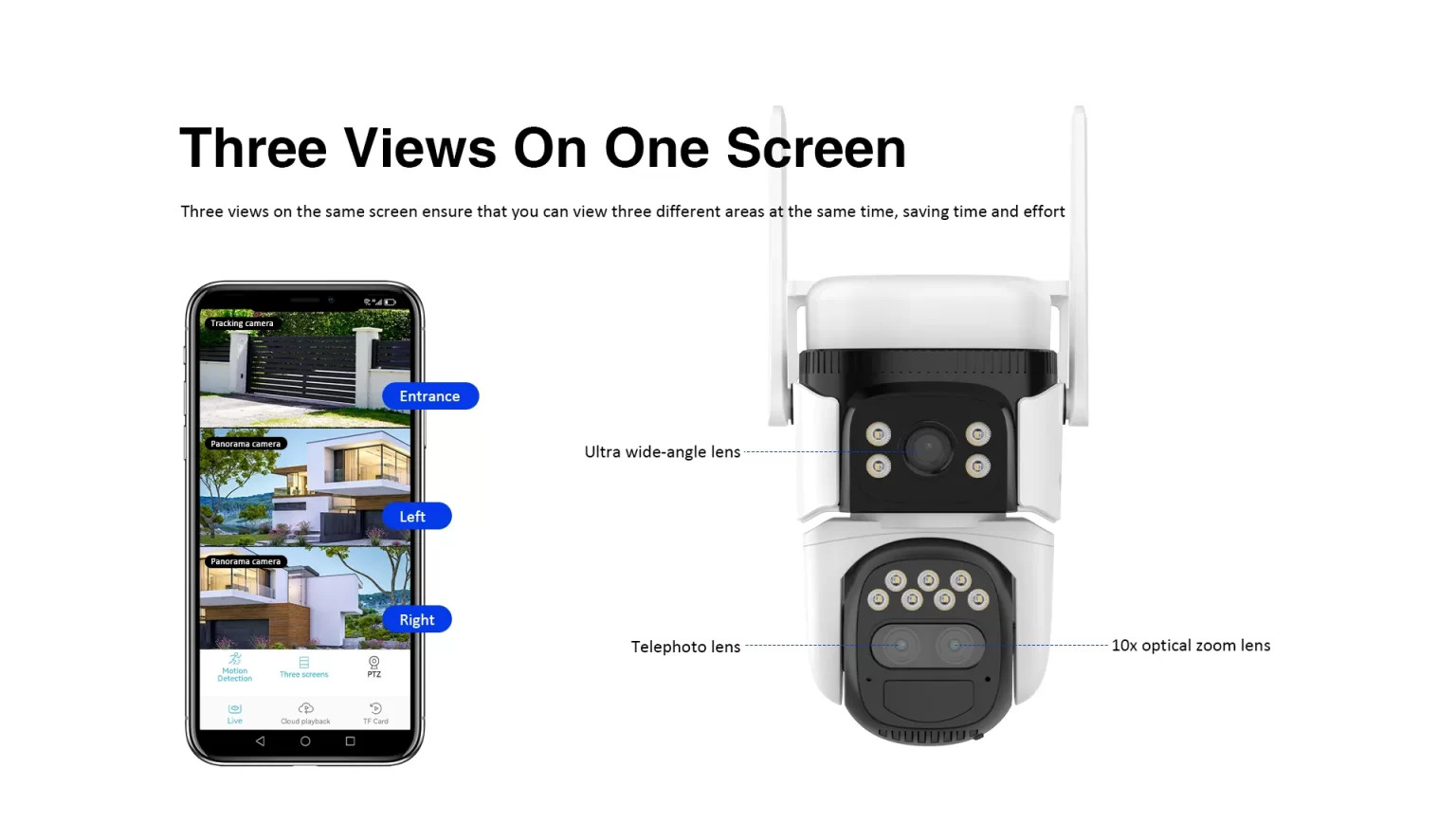

Triple Lens Monitoring
Monitor three different viewing areas simultaneously using:
- Wide-angle panoramic camera
- Tracking camera with zoom capability
- Intelligent triple-lens linkage
- Automatic zoom tracking
AI Human Detection
Advanced AI intelligently distinguishes human movement from other objects, minimizing false alarms.
- Human detection
- PIR motion detection
- Custom detection zones
- Intelligent alarm notifications

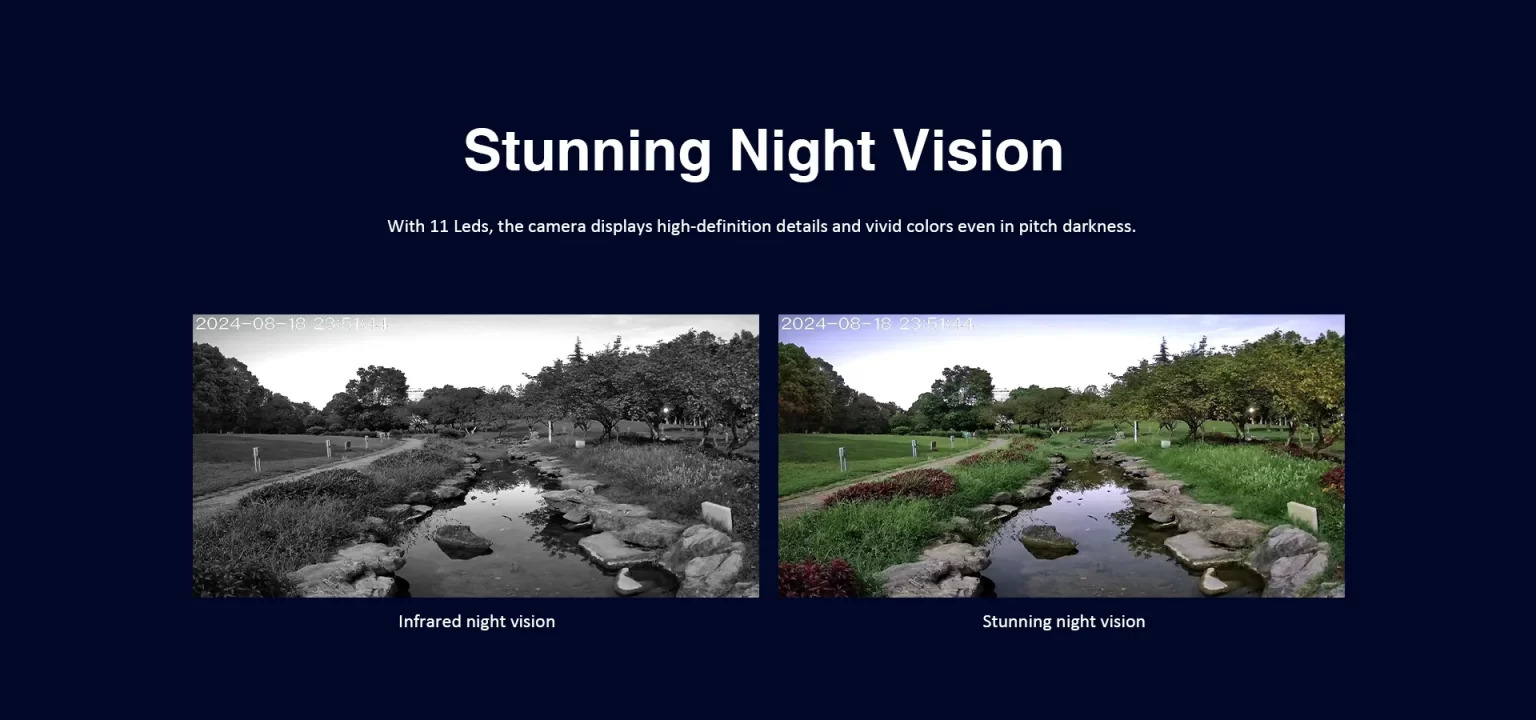

Full-Color Night Vision
Capture clear footage day and night with dual light source technology.
- 11 infrared LEDs
- 11 white LEDs
- Automatic day/night switching
- Full-color night vision
Solar Powered
Designed for long-term outdoor operation.
- Includes solar panel
- Built-in rechargeable battery
- Energy-efficient low-power system
- Continuous charging during daylight
Massive 20000mAh Battery
High-capacity rechargeable battery provides extended operation with intelligent power management.
- Built-in 20000mAh LiFePO4 battery
- Low battery warning
- Ultra-low standby power consumption
Two-Way Audio
Communicate remotely using the built-in microphone and speaker with real-time voice intercom through the mobile app.
Fast Event Recording
Starts recording within 400ms after motion detection to capture important events quickly.
Free Cloud Storage
Includes complimentary cloud storage for alarm recordings and also supports loop recording and TF card storage up to 256GB.
Smart Alarm System
Receive instant notifications when motion is detected.
- Human detection alerts
- PIR motion detection
- Sound and light alarm
- Custom alarm sounds
- App push notifications
Remote Access
View live video and playback anytime using the O-KAM Pro mobile application with live viewing, playback, remote control, device management, and up to four simultaneous users.
Technical Specifications
System
| Operating System | Linux |
|---|---|
| Mobile App | O-KAM Pro |
| Simultaneous Online Users | Up to 8 |
Camera
| CPU | T23ZN |
|---|---|
| Internal Storage | 512MB |
| Image Sensor | 3 × GC2083 |
| Minimum Illumination | 0.8 Lux (Color), 0.3 Lux (Black & White) |
Lens
| Panorama Camera | 4mm Lens (1G3P) |
|---|---|
| Tracking Camera | 4mm (1G3P) + 12mm (1G2P) |
| Viewing Angle | 100° |
| Pan Rotation | 355° |
| Tilt Rotation | 90° |
Video
| Main Stream | 1080P @ 15fps |
|---|---|
| Sub Stream | 360P @ 15fps |
| Compression | MJPEG / JPEG |
| Bit Rate | 128-4096 kbps |
| Image Adjustment | Vertical and Horizontal Adjustment |
| OSD Display | Supported |
Night Vision
| Night Vision Type | Full Color |
|---|---|
| Infrared LEDs | 11 |
| White LEDs | 11 |
| Automatic IR Switching | Yes |
Audio
| Microphone | Built-in (-38dB) |
|---|---|
| Speaker | Built-in 8Ω 1W |
| Audio Compression | G711A |
| Sampling Rate | 8KHz / 16-bit |
| Two-Way Audio | Yes |
AI Features
- Human Detection
- PIR Motion Detection
- Custom Activity Zones
- Intelligent Alarm Push Notifications
- Smart Alarm Sounds
- Advanced AI Support for Pets
- Advanced AI Support for Vehicles
- Advanced AI Support for Package Detection
Network
| Connection | 4G & 5G LTE |
|---|---|
| Mobile App | O-KAM Pro |
| QR Code Pairing | Supported |
| Supported Networks | Cat1 & Cat4 LTE |
Storage
| TF Card | Up to 256GB |
|---|---|
| Cloud Storage | Free Loop Recording |
Alarm Functions
- Human Detection
- PIR Detection
- Detection Distance: 10 metres
- Sound Alarm
- Light Alarm
- Full-Color Night Warning Lights
Power
| Battery Capacity | 20000mAh |
|---|---|
| Charging | Solar Panel + DC |
| Input Voltage | DC 5V ±5% |
Power Consumption
| Sleep Standby | 300uA |
|---|---|
| Working | 400mA - 1.8A Max |
Environmental Specifications
| Operating Temperature | -10°C to 55°C |
|---|---|
| Operating Humidity | <90% RH |
Physical Specifications
| Dimensions | 183 × 164 × 122 mm |
|---|---|
| Weight | 680 g |
Package Contents
- V28 3.0 Triple Lens Solar 5G Camera
- Solar Panel
- Solar Panel Mounting Bracket
- User Manual
Ideal Applications
The V28 3.0 Triple Lens is ideal for:
- Residential security
- Farms and agricultural properties
- Construction sites
- Warehouses
- Vacation homes
- Parking areas
- Shops and small businesses
- Remote locations without Wi-Fi
- Outdoor perimeter monitoring
- Off-grid surveillance
